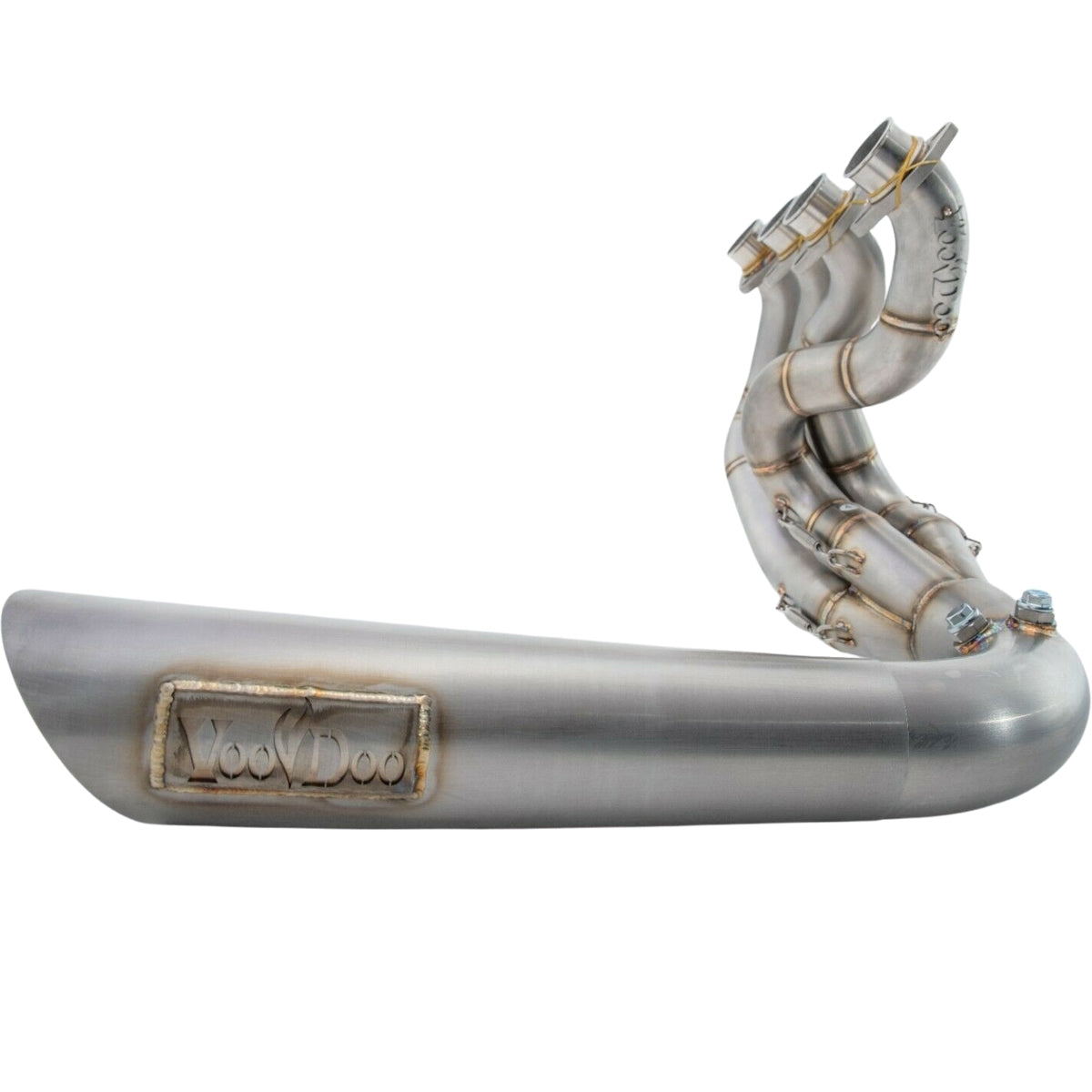

Kawasaki ZX14R 2006-2026 Natural Big Tube Sidewinder Exhaust by Voodoo

Why the Voodoo Sidewinder Is the Ultimate ZX14R Full Exhaust Upgrade

The Voodoo Sidewinder is a purpose-built full exhaust system for the Kawasaki Ninja ZX14R, engineered to extract every ounce of performance from this legendary sportbike engine. Unlike slip-ons that compromise flow at the headers, the Sidewinder replaces your entire exhaust path — from the massive stainless steel down tubes all the way through the oversized 4-into-1 collector — delivering unrestricted exhaust scavenging, a deep aggressive tone, and a dramatic visual transformation. If you're building a ZX14R that performs and sounds as mean as it looks, this is the system to run.

Fitment Information — Kawasaki ZX14R

Lower fairing modification required on all years.

Voodoo Sidewinder Full Exhaust System Features

Full System Construction — Not Just a Slip-On

The Sidewinder is a complete header-back exhaust system. It includes massive inlets and full-length down tubes, eliminating the restrictive factory header as the primary bottleneck. The result is a dramatic improvement in exhaust gas velocity and scavenging compared to any slip-on-only upgrade.

• Massive oversized inlets — maximize primary tube flow from cylinder exit
• Single-step collector design — smooth transition to eliminate turbulence at the merge
• Oversized 4-into-1 collector with an internal pyramid structure for collector support and optimized exhaust gas flow
• No baffle, no end cap — raw, open flow for maximum performance (not street-legal for closed-course use; verify local noise regulations)

Materials & Construction

• Stainless steel construction throughout — corrosion-resistant, durable, and built to withstand sustained high heat from ZX14R power output
• O2 bung included — retains your oxygen sensor port for proper fueling and optional fueling management

Practical Engineering — What Stays, What Changes

Voodoo has engineered the Sidewinder to preserve your bike's critical mechanical systems while dramatically changing the exhaust. Key practical details every ZX14R owner needs to know:

• Oil filter access retained with 204-style filter — no need to pull the exhaust for routine oil changes
• Radiator is retained — full cooling functionality is maintained
• Lower fairing modification required — the Sidewinder's Big Tube design does not fit behind the stock lower fairing without trimming or removing it; plan accordingly for your build
• Exhaust gaskets included
• Lower radiator bracket included
• All mounting hardware included — complete bolt-on kit

The "Big Tube" Sidewinder vs. Standard Headers

The "Natural Big Tube" designation refers to the upsized primary and collector tube diameter. Larger tube diameter reduces backpressure, which at high RPM on the ZX14R's 1441cc inline-four means more complete exhaust evacuation per cycle. Combined with the internal pyramid collector design, flow remains organized through the merge rather than becoming turbulent — a common weakness in budget 4-into-1 systems.

Common Questions — Voodoo ZX14R Sidewinder Exhaust

Does the Voodoo Sidewinder work with a stock ECU?

The Sidewinder full system significantly increases exhaust flow, which will lean out the air/fuel mixture. Running this system without ECU tuning or a fuel management device (Power Commander, Bazzaz, etc.) is not recommended and may result in lean-induced engine damage. A dyno tune after installation is strongly advised to realize the full performance benefit and protect your engine.

Is the Voodoo Sidewinder street legal?

No. The Sidewinder is an open, baffle-free, no-end-cap exhaust system and does not meet EPA or CARB noise and emissions standards for street use. It is intended for closed-course competition and off-road use only. Always verify applicable local and state regulations before use on public roads.

Do I need to modify the lower fairing?

Yes. The oversized Big Tube design of the Sidewinder requires lower fairing modification. Most ZX14R riders running this system opt to remove the lower fairing sections entirely for a raw streetfighter aesthetic, or trim the panels for clearance. Plan for this modification as part of your build — it is not a bolt-on-and-go installation with stock body panels.

Will I lose oil filter or radiator access?

Oil filter access is retained using a 204-style filter, so routine oil service does not require removing the exhaust. The radiator is also fully retained, and the lower radiator bracket is included in the kit — your cooling system functionality is not compromised.

What years does the Voodoo Sidewinder fit?

The Voodoo Sidewinder fits the Kawasaki Ninja ZX14R from 2006 through 2026. See the full fitment table below for year-by-year confirmation.

Does the kit include gaskets and hardware?

Yes — exhaust gaskets, the lower radiator bracket, and all mounting hardware are included. You should not need to source additional installation hardware to complete the install.

What does "Natural" finish mean?

"Natural" refers to the raw brushed stainless steel finish — no coating, no black finish, no heat-wrap. The polished stainless look develops a natural heat patina over time that many performance riders prefer for its aggressive, functional appearance.

How does the Sidewinder compare to a slip-on exhaust for the ZX14R?

A slip-on replaces only the muffler canister and makes modest gains because the factory header remains the primary restriction. The Sidewinder is a full system — replacing headers, down tubes, and collector — which produces substantially larger flow improvements and a more aggressive exhaust note. For riders building a dedicated track or drag bike, or a high-performance street fighter, the full system is the correct approach. For riders wanting an easier install with sound improvement only, a slip-on is simpler.
